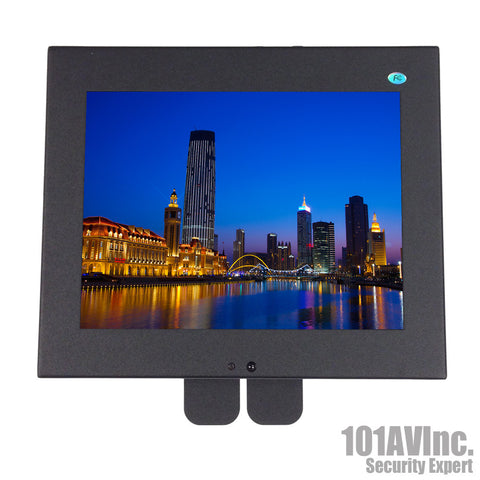

101AV [MT-D80] 8" CCTV Professional Security Monitor VGA BNC TFT LCD LED Display Metal 4:3
This is a 8-inch professional grade TFT LCD video monitor. Our MT-D80 is professional grade 8" color LCD wall mountable security monitor that is compatible with all 4 and 8 channel DVR's / cameras with industry standard BNC and VGA connections. MT-D80 has 2 BNC inputs and 1 VGA input giving the user the ability to connect to 3 different DVR's and/or cameras. Already own a DVR or Camera but need an additional monitor? This cost effective solution can be mounted on a wall or desk for easy viewing.
Feature Points:
- 8 inch LCD Video Monitors with over 500 TVL.
- 2D Comb Filter with De-interlace and Noise Reduction
- NTSC/PAL/SECAM Auto Detection
- VGA Input x 1; BNC Input x 2
- Certification: FCC, CE, and CB
- Metal housing and frame
Specification:
|
Model |
MT-D80 |
|
Size |
8 inch |
|
Aspect Ratio |
4:3 |
|
Resolution (H x V) |
800 x 600 |
|
Colors |
16.7M |
|
Viewing Angle |
H: 130º V: 120º |
|
Viewing Lines |
500 TV Lines |
|
Contrast Ratio |
500:1 |
|
Response Time |
25ms |
|
2D Comb Filter with De-interlace |
Yes |
|
2D Noise Reduction |
Yes |
|
Brightness |
250cd/m2 |
|
Composite Video In |
BNC x 2 |
|
Composite Video Out |
N/A |
|
VGA Inputs |
VGA x 1 |
|
Auto Adjustment |
Yes |
|
VESA Size |
75 x 75 mm |
|
Stand |
Yes (Metal) |
|
Bezel |
Metal |
|
Protection Glass |
Yes |
|
OSD Language |
English, Italian, and Simplified Chinese |
|
Power Consumption |
18W |
|
Power Supply |
DC 12V / 2A |
|

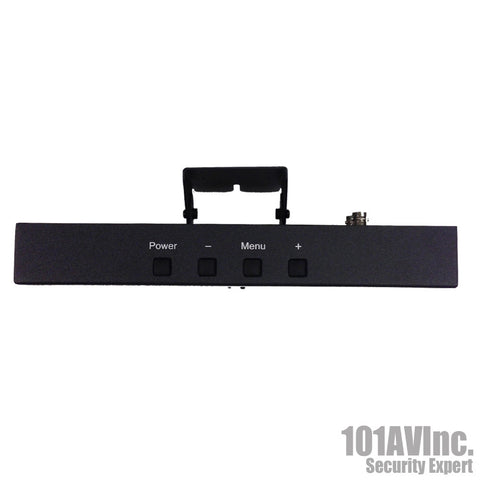

OSD Control |
Yes |
|

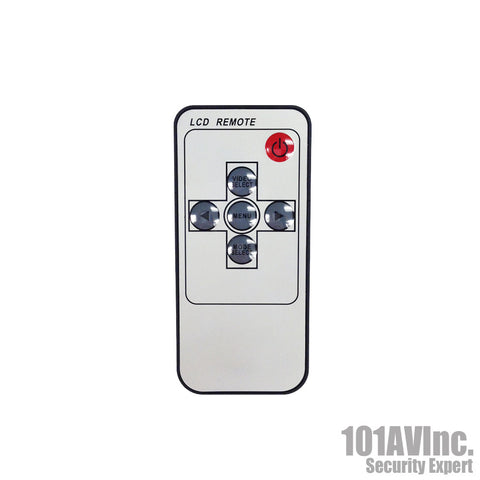

Remote Control |
Yes |
|
Accessories |
Power Supply, Remote Control, User Guide, and Stand |
|
Packaging (L x D x W) |
10.6" x 3.9" x 10.6" (270 x 100 x 270 mm) |
|
Weight |
3.7 lbs (1.7kg ) in carton |
|
Operating Temp |
-10 oC ~ 50 oC |
|
Safety |
Energy Star, FCC-DOC, CE, CCC, and RoHS |
What's in the box?
- Security Monitor x 1, Power Supply, Remote Control, User Guide.
